Analyzing Windows Artifacts

A step-by-step guide to parsing, extracting, and analyzing Windows Registry hives, event logs, and autorun files using Eric Zimmerman's forensic tools and Sysinternals utilities.

Quick Navigation

1
Export Autoruns to CSV
First, create a temporary directory and execute autorunsc (the command line version of Sysinternals Autoruns) with the -c switch to export all autoruns information in CSV format.
```
mkdir c:\tmp
autorunsc -c > c:\tmp\autorun.csv
```
2

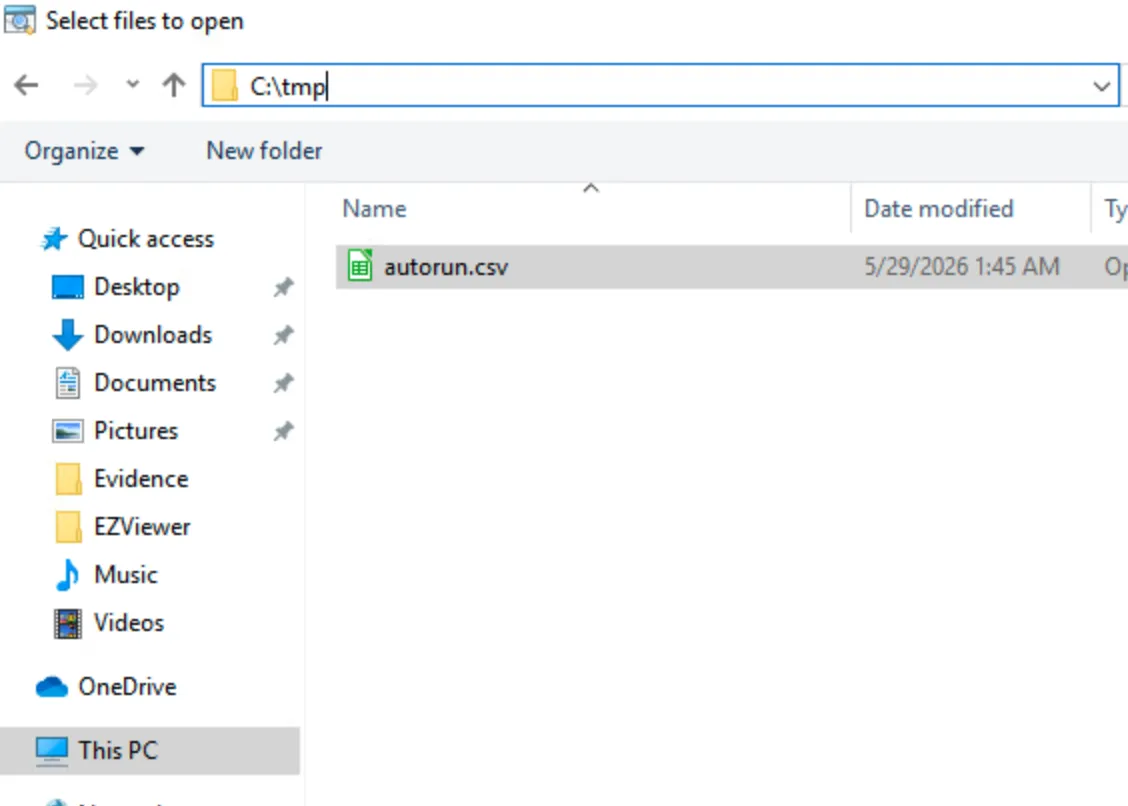

Load CSV in Timeline Explorer
Launch Timeline Explorer simply by running its name in the command prompt, then open the newly created CSV file (c:\tmp\autorun.csv).
```
timelineexplorer
```
3

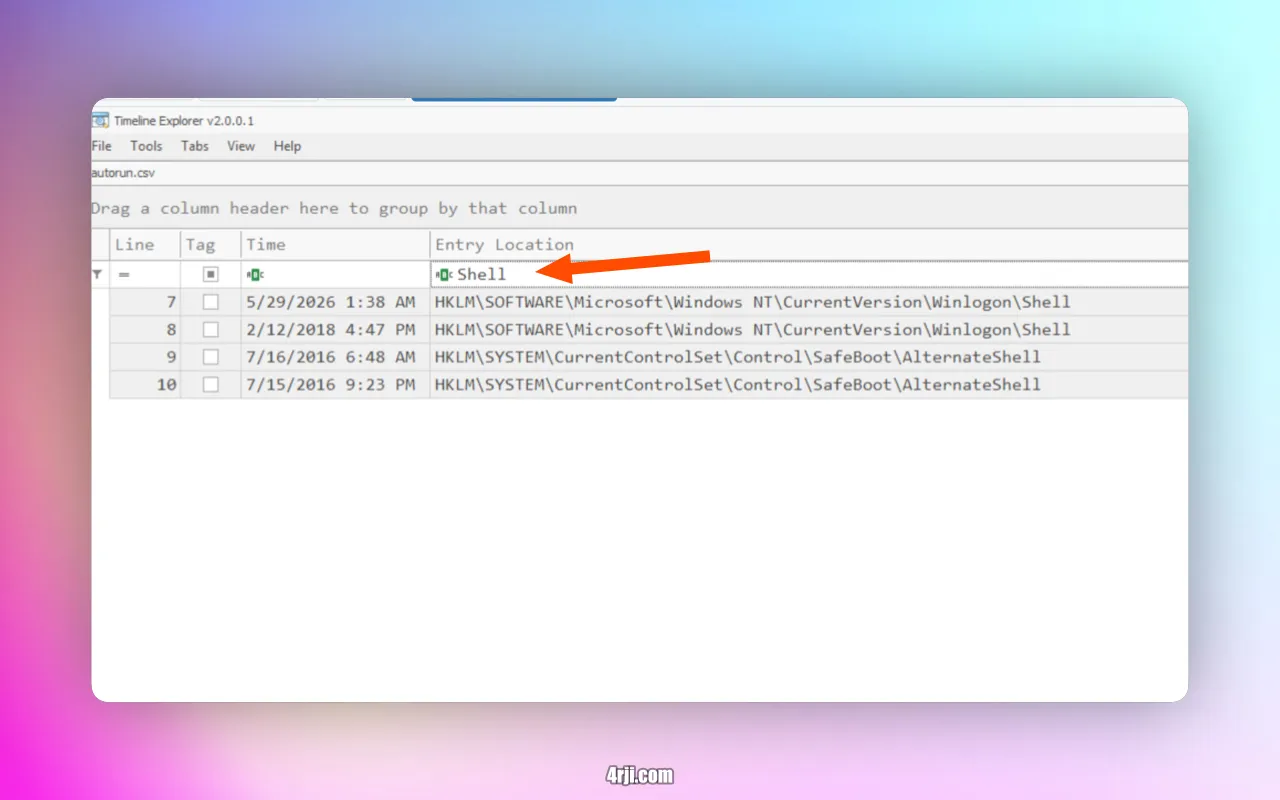

Search for "shell"

Use the search filter inside Timeline Explorer to look for references to shell, which can highlight command line shells, powershell executions, or persistence mechanisms.
4

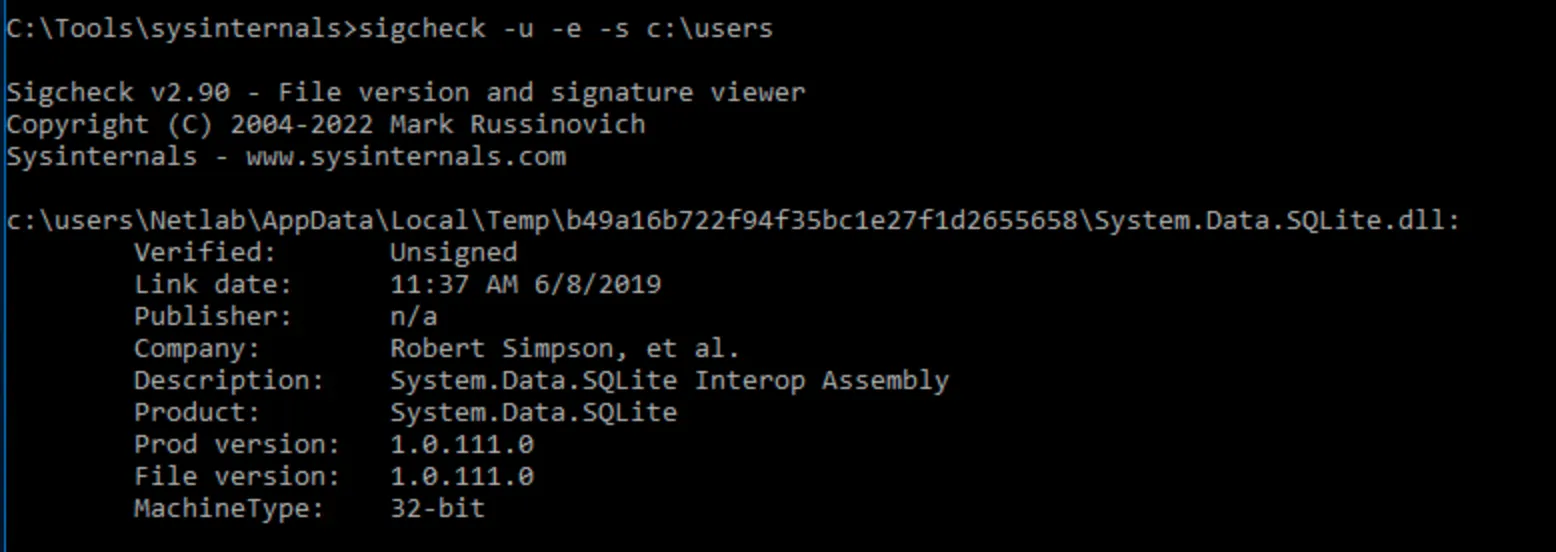

Scan User Profiles with Sigcheck
To further investigate potential persistence or unauthorized binaries, run sigcheck to scan the C:\Users folder recursively. The flags check for unsigned (-u) executable files (-e) across all subdirectories (-s).
```
sigcheck -u -e -s c:\users
```
5

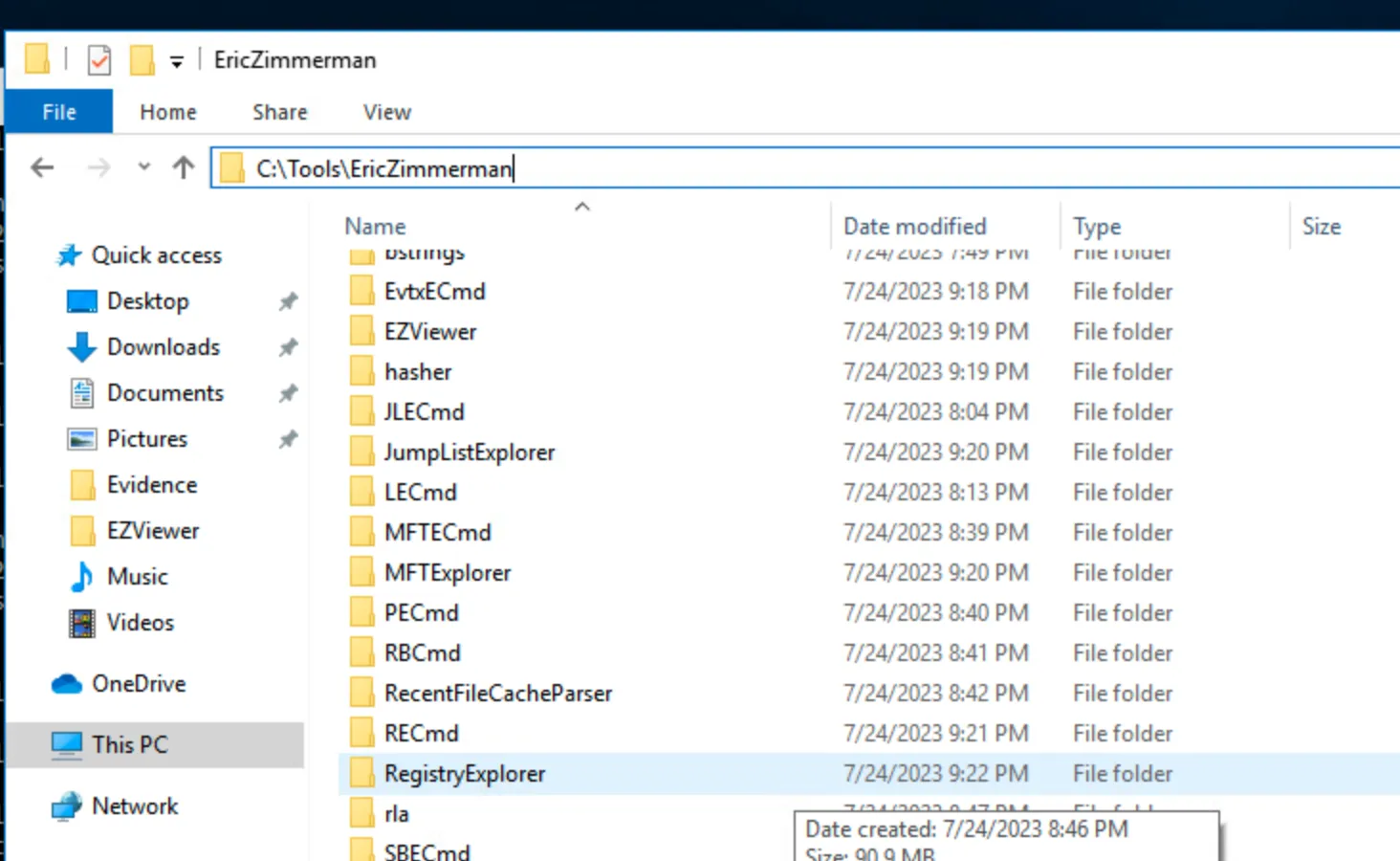

Launch Registry Explorer

Navigate to Registry Explorer directory at C:\Tools\EricZimmerman\RegistryExplorer and open the application.
6

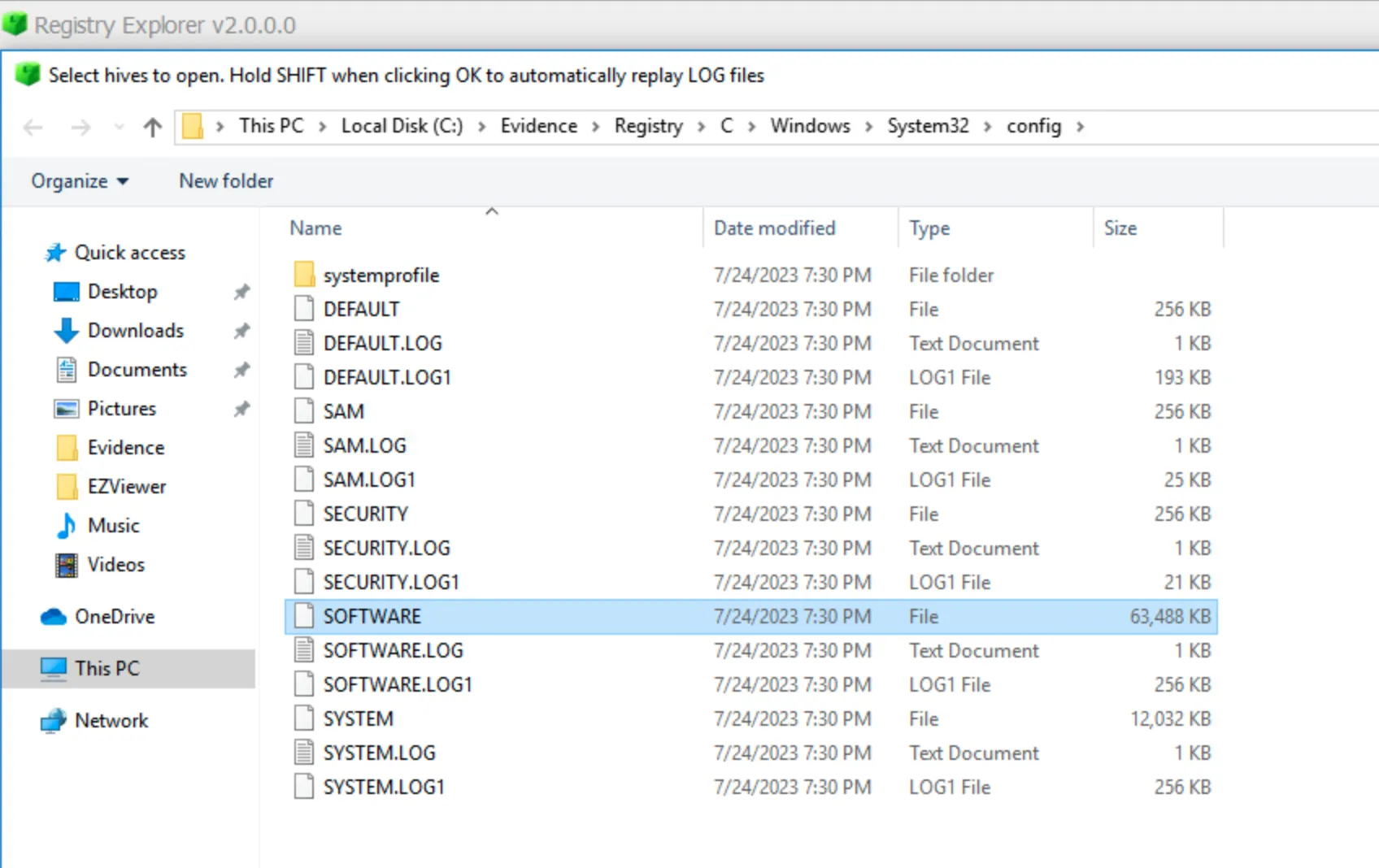

Load the SOFTWARE Registry Hive

Go to the top menu and select File > Load hive. Load the SOFTWARE hive file from the Windows directory.
7

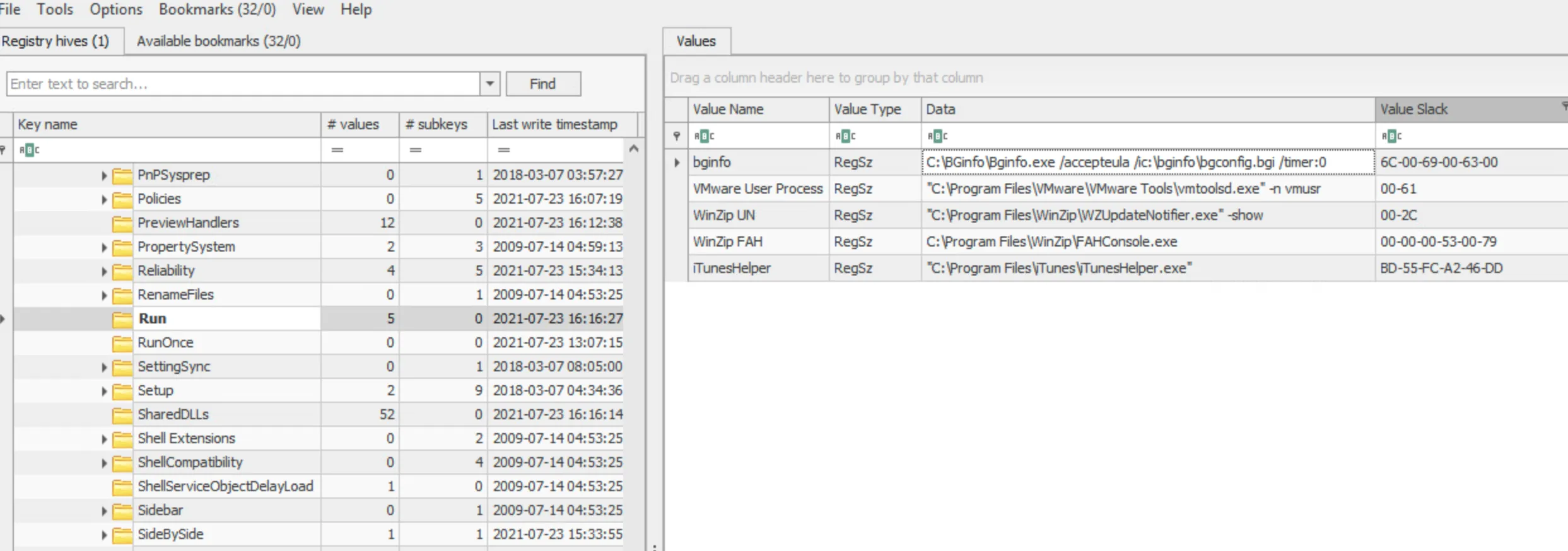

Inspect Windows Run Keys

Navigate to the key path: CMI-CreateHive... \ Microsoft \ Windows \ CurrentVersion \ Run. Here we can audit the active startup entries configured to run automatically on Windows boot.
8
Parse Hives with RECmd Batch
Execute RECmd (Registry Explorer Command Line) to parse the registry hive using the SoftwareASEPs.reb batch rules, and output the findings as a CSV file to the C:\tmp directory.
```
C:\Tools\EricZimmerman\RECmd\RECmd.exe --bn BatchExamples\SoftwareASEPs.reb -f "C:\Evidence\Kape Collection\C\Windows\System32\config\SOFTWARE" --csv C:\tmp
```

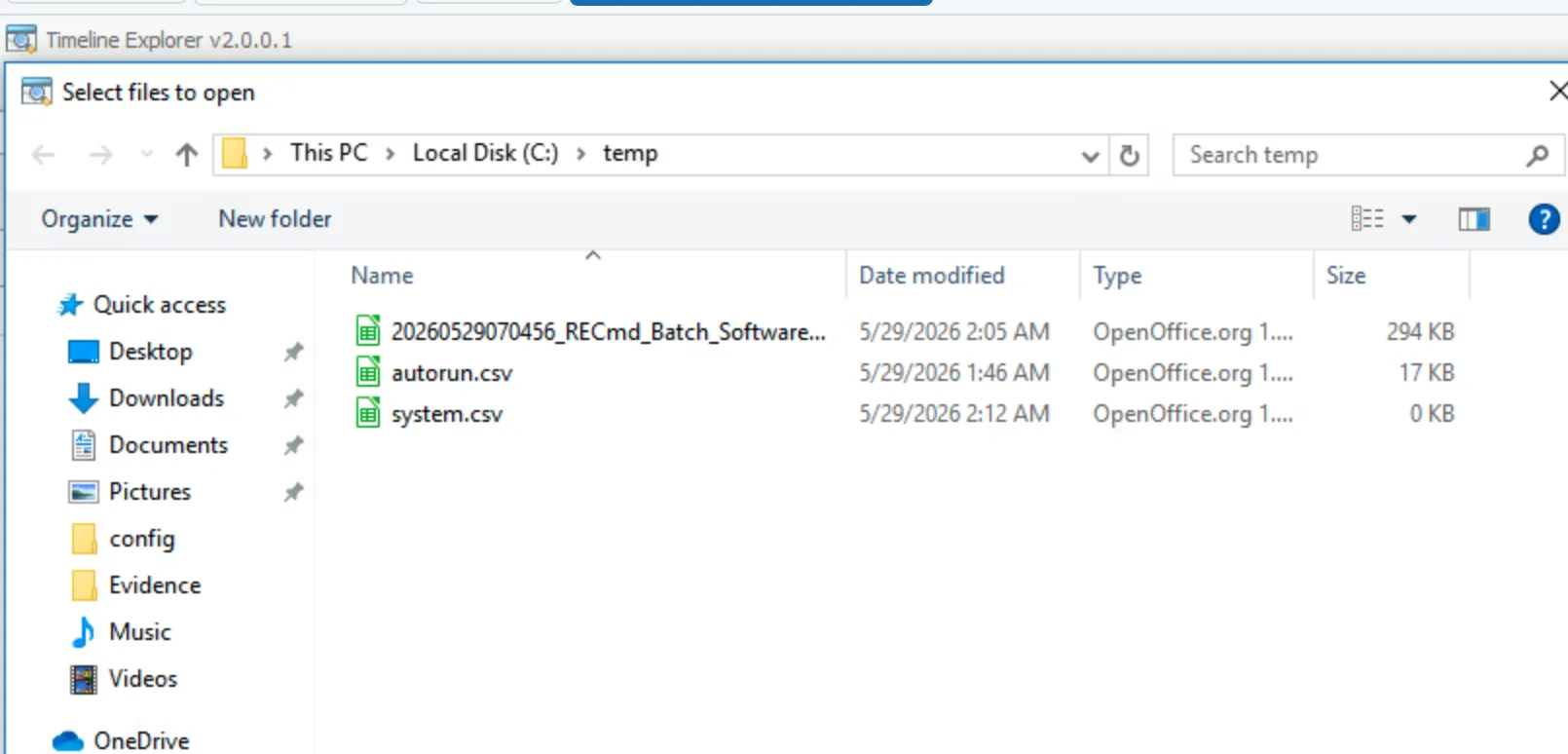

Open Timeline Explorer, navigate to the C:\tmp folder, and load the newly generated batch CSV file (named starting with Batch...).
9
Parse Event Logs with EvtxECmd
Run EvtxECmd (Event Log Explorer Command Line) to parse the Windows System.evtx log file and export the parsed events into a CSV file named system.csv inside the C:\tmp directory.
```
C:\Tools\EricZimmerman\RECmd\EvtxECmd.exe -f C:\Windows\System32\winevt\Logs\System.evtx --csv C:\tmp --csvf system.csv
```

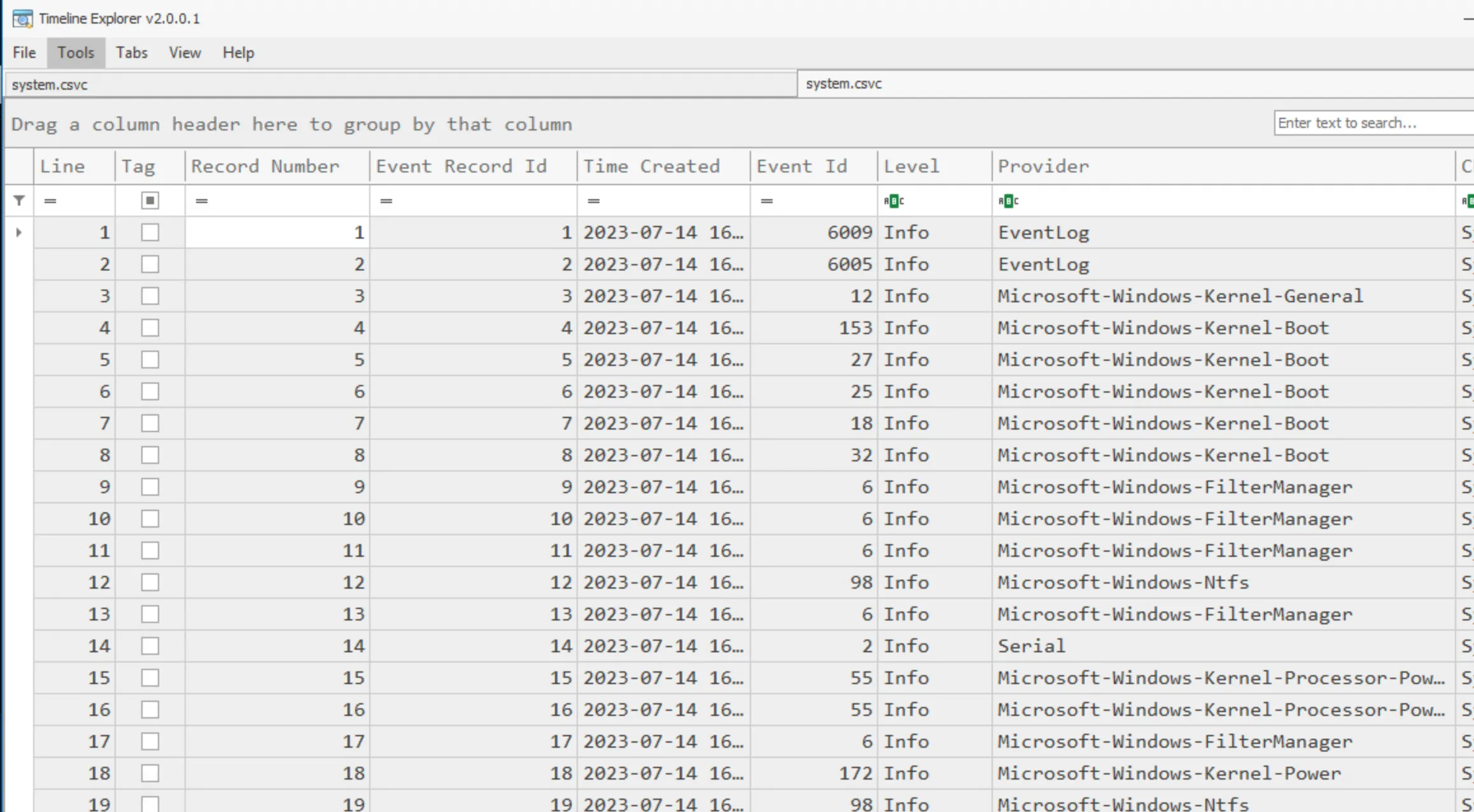

Open Timeline Explorer and load the generated system.csv file to inspect the Windows Event Log records in a tabular interface.
