Project Highlights
This OPNsense reverse proxy project documents HAProxy configuration inside OPNsense for publishing internal services through controlled HTTP and HTTPS frontends. It focuses on mapping real servers, building backend pools, defining public services, and using conditions and rules to route traffic to the correct internal application.
- Configured HAProxy inside OPNsense for reverse proxy service publishing.
- Defined real servers for internal services such as Proxmox and TrueNAS.
- Created backend pools for routing traffic to the correct internal target.
- Configured public HTTP and HTTPS services in the HAProxy virtual service section.
- Built conditions and rule checks for host or service-based routing.
- Documented the workflow with screenshots for real servers, backends, public services, conditions, and rules.
HaProxy with OPNsense
Screenshots of the configuration

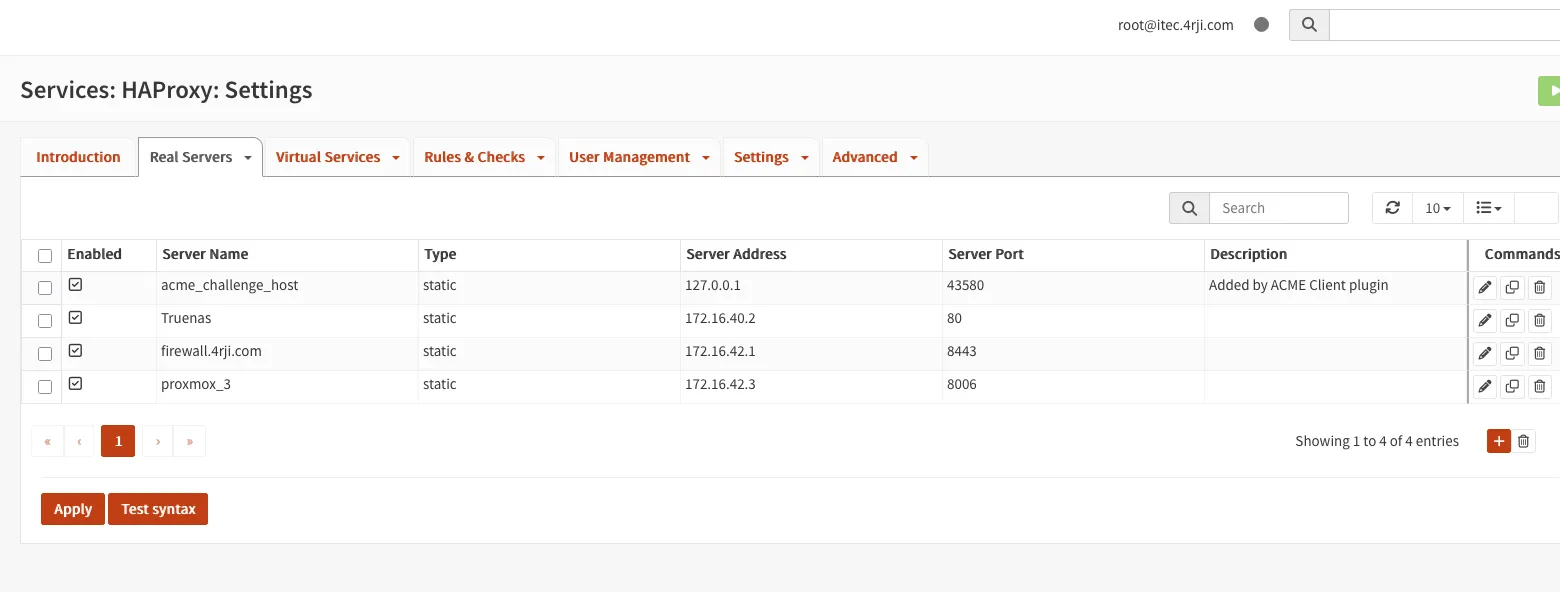

Real Server
Real servers

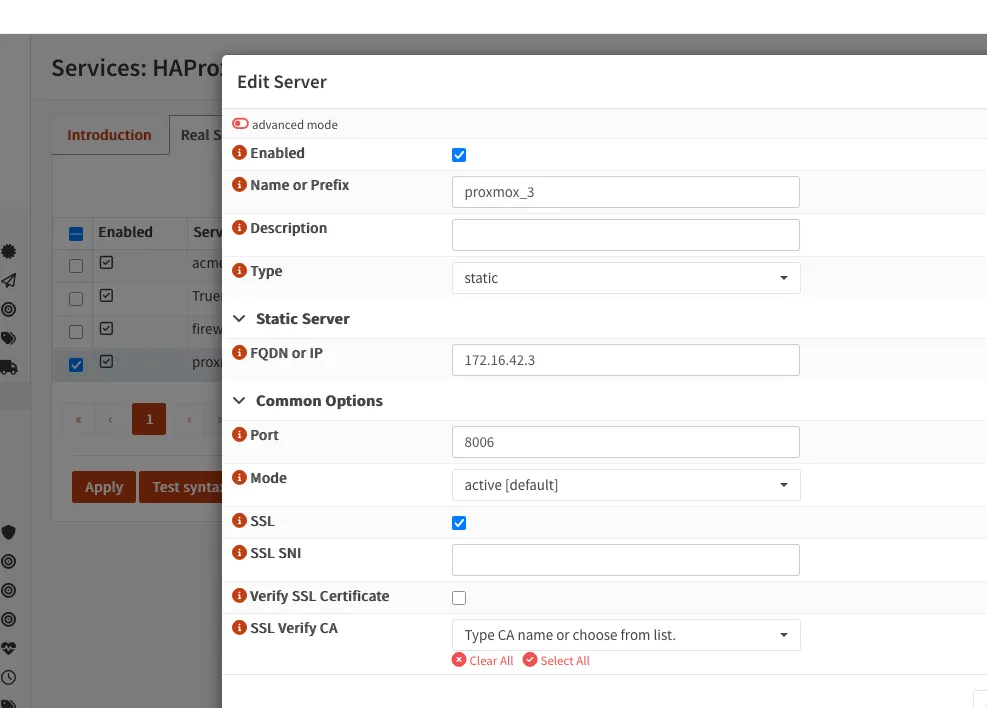

Configuration

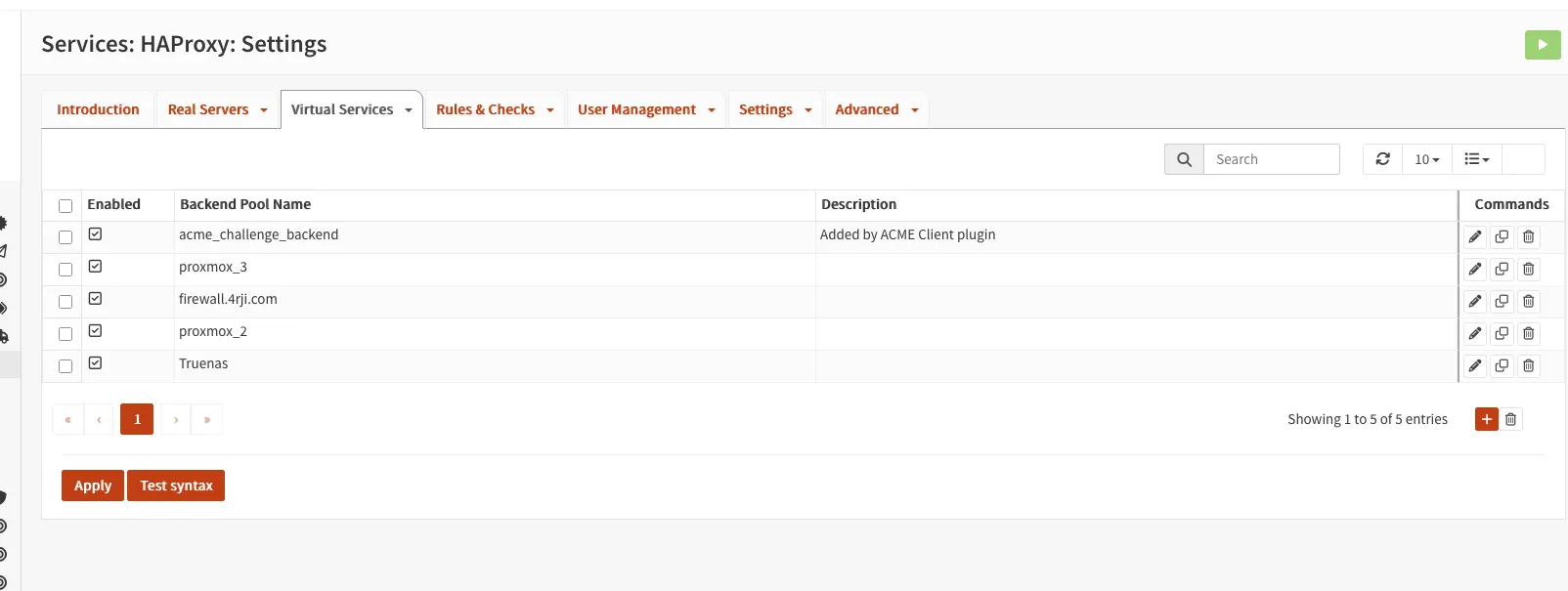

Backend
Backend screenshot on virtual service

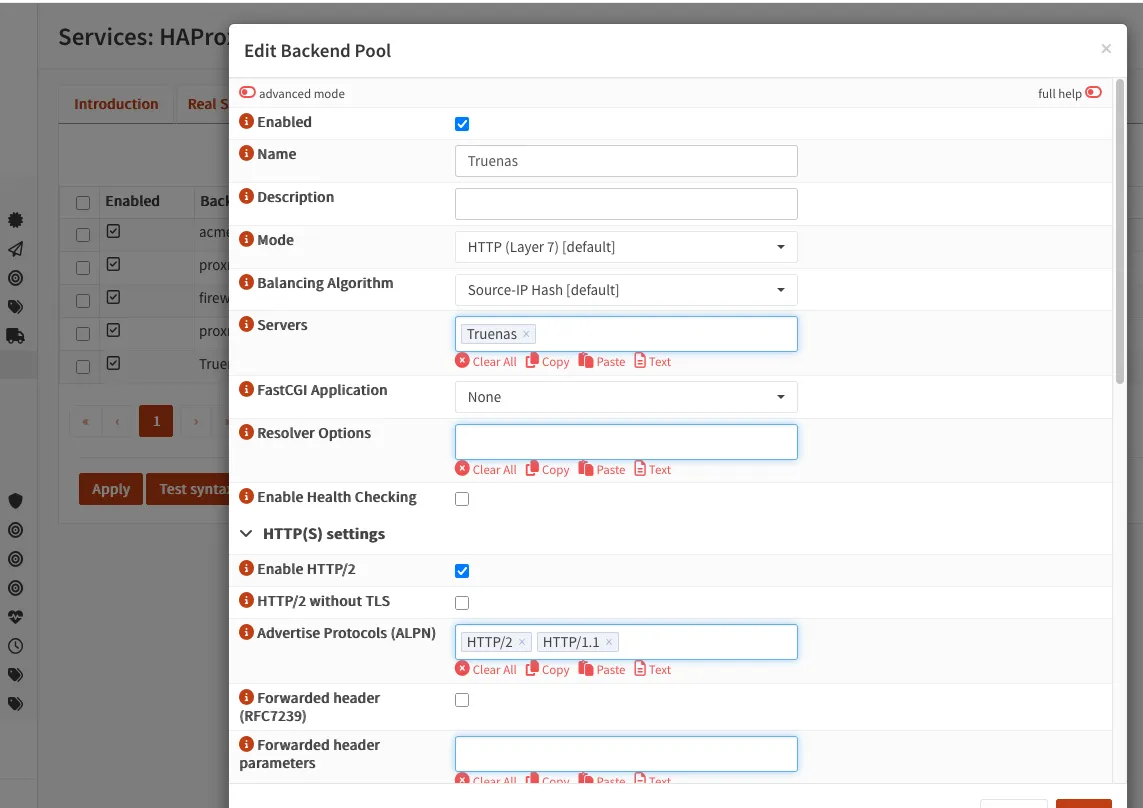

Configuration
Public Service

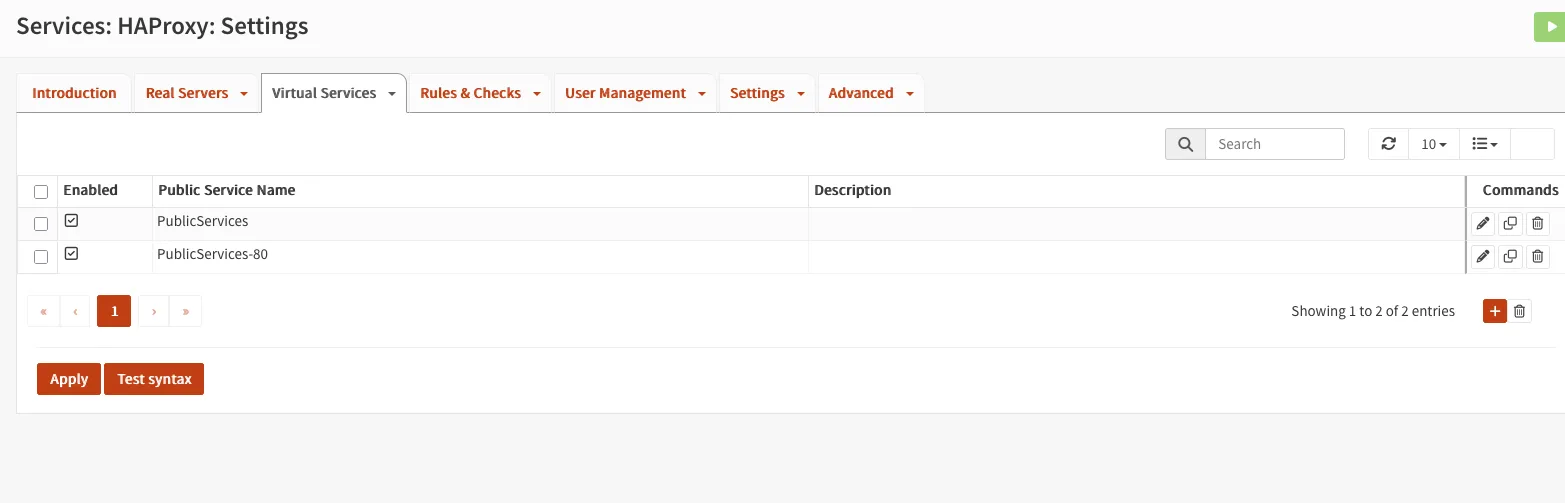

public services screenshot on virtual service

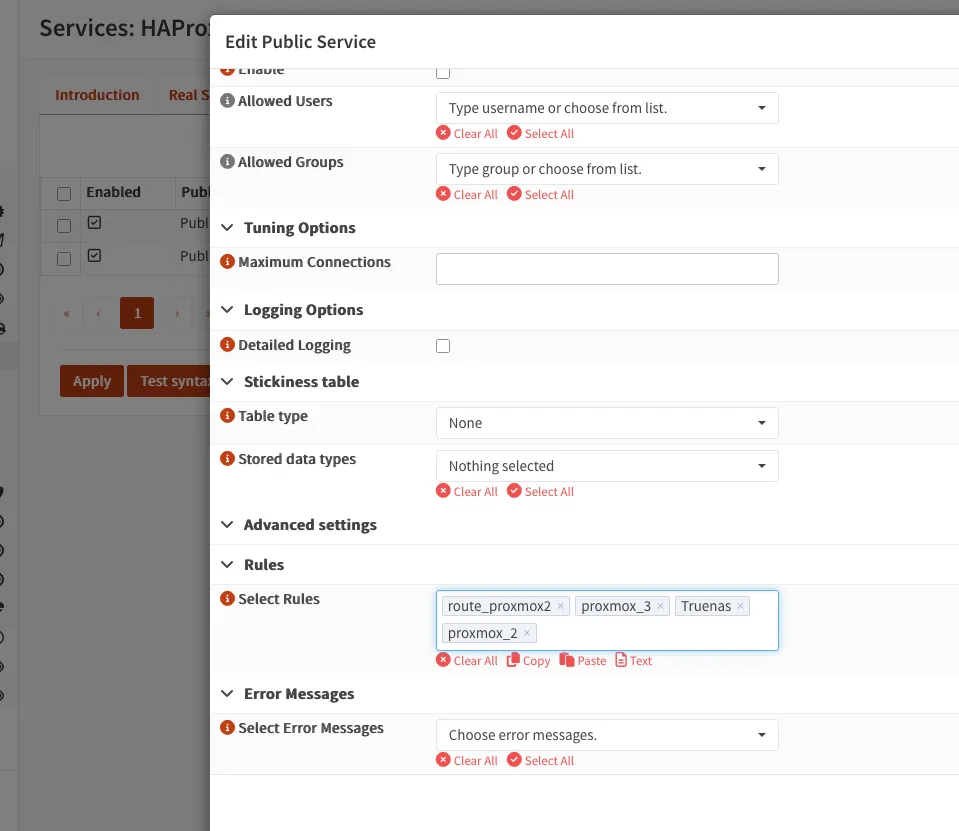

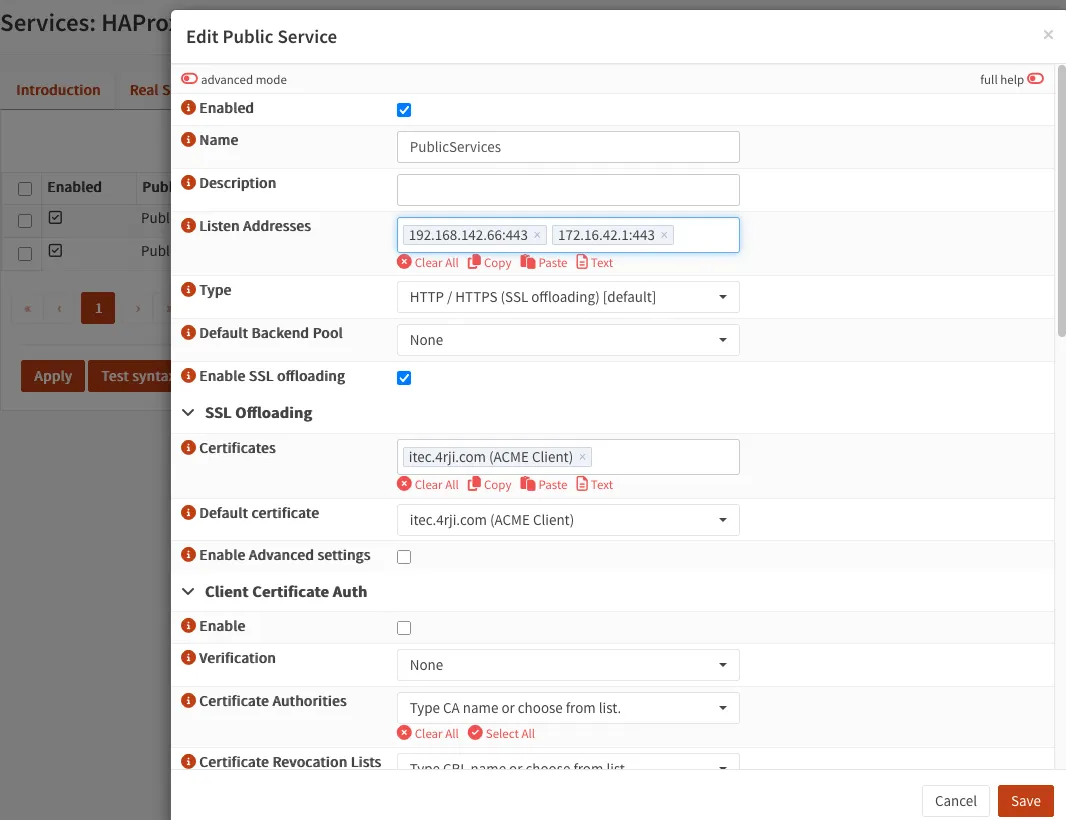

HTTPS

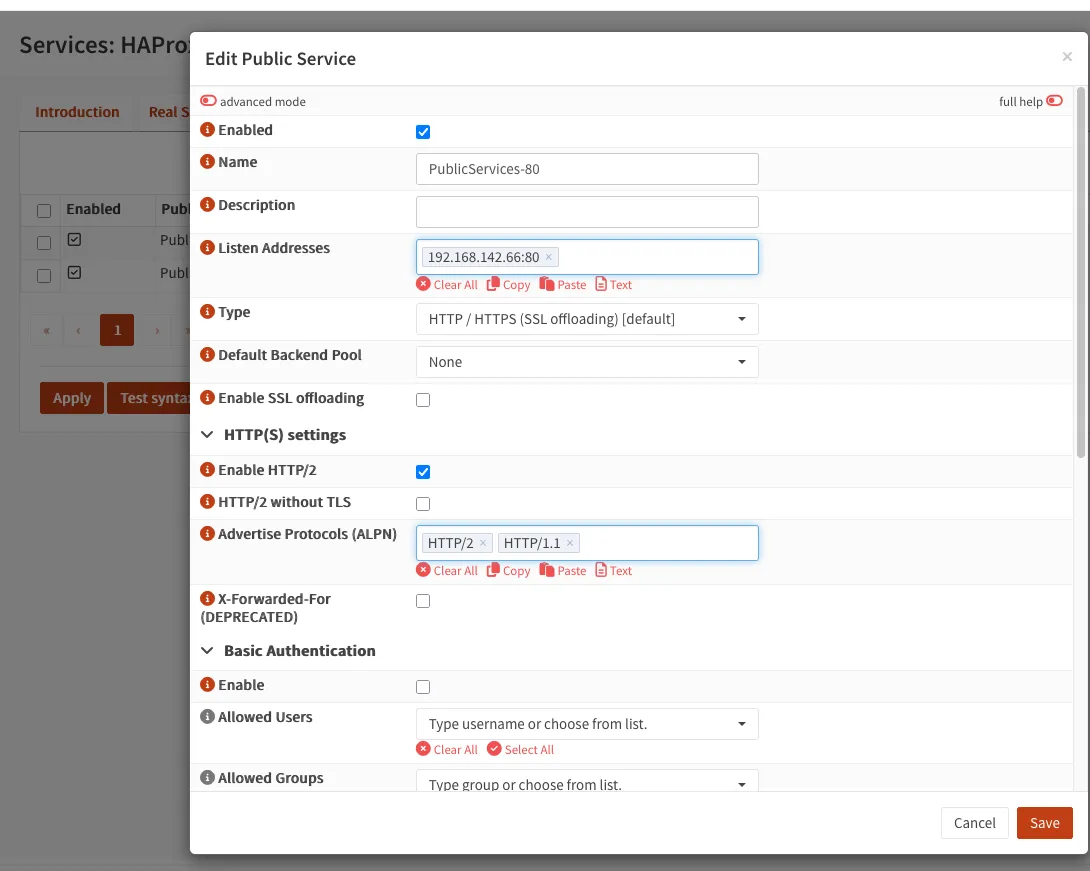

HTTP

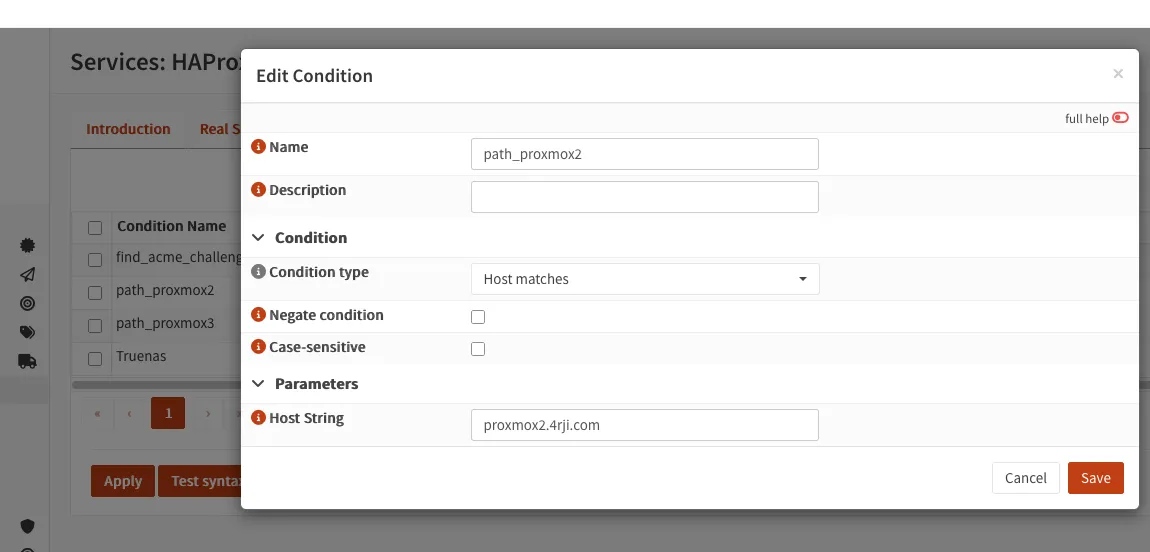

Conditions

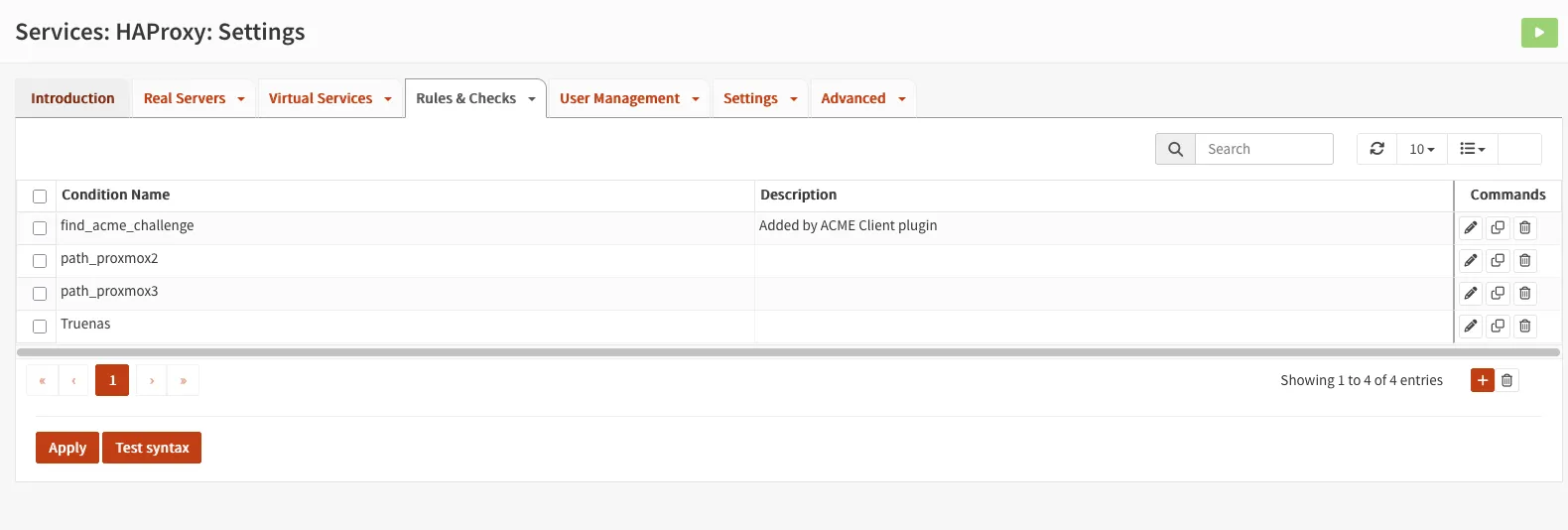

Conditions on Rules & checks
Configuration

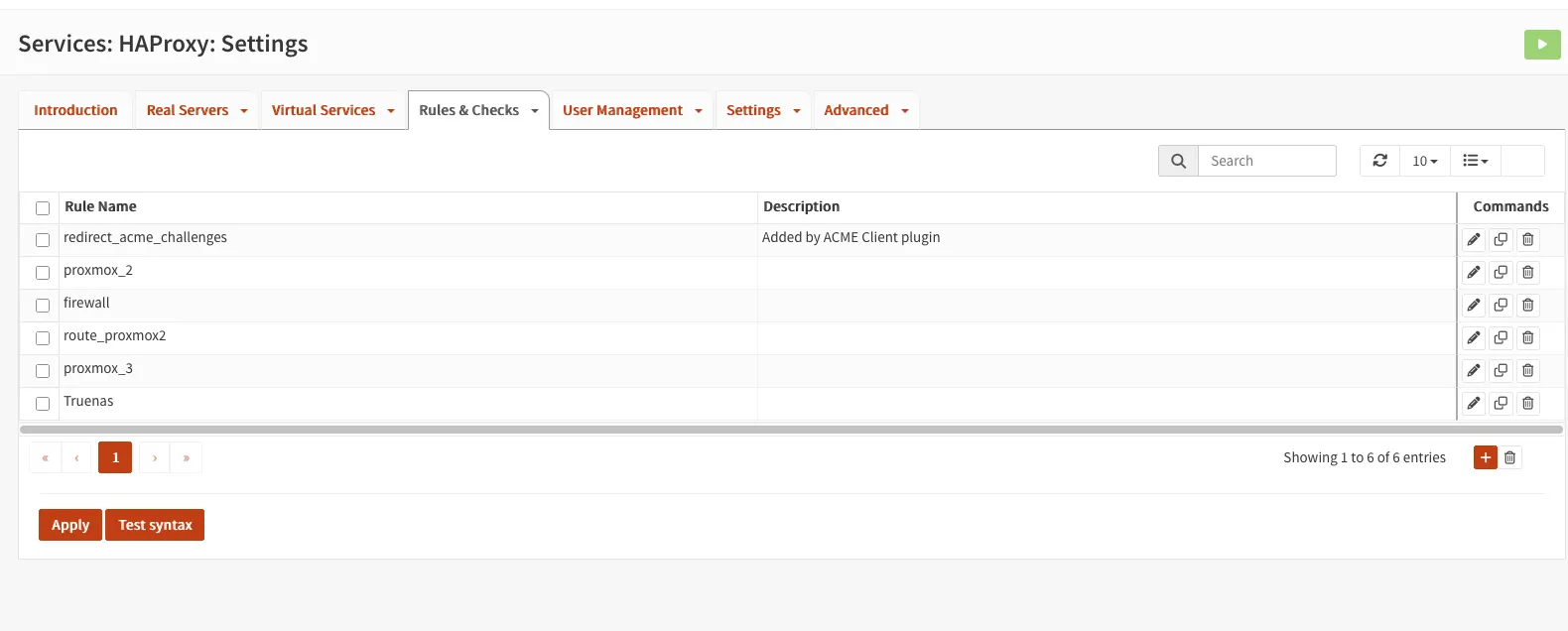

Rules

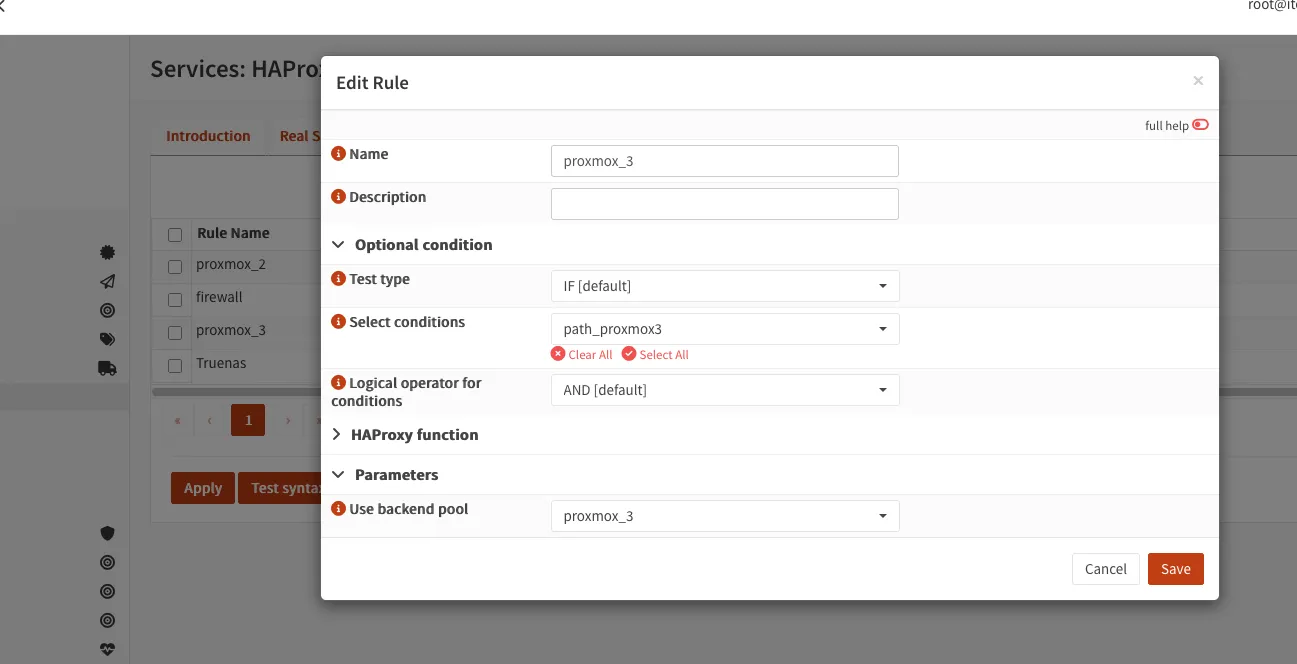

Rules on Rules & checks
Configuration
